High quality hot-sale electric winch CT2354,12V electric winch

FOB Price

US $30.0500 - 40000 set

US $10.040001 - 999999 set

group name: Electric Winch

Min Order: 500 set

brand name: atliprime

model: CT2354

Nearest port for product export: NINGBO, SHANGHAI, TIANJIN, QIANGDAO

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, CPT, DEQ, DDP, DDU, Express Delivery, DAF, DES

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

Export mode: Export through agents

update time: Wed, 02 Jul 2025 01:44:57 GMT

contact supplier

Paramtents

Power Source Electric
Application Auto
Capacity 2000LB
Name belt winch
Other name popular belt winch

Packging & Delivery

Min Order500 set

Briefing

Our product is under ISO9001:2000 quality control system,our winches have obtained international approval CE and ROHS.

Detailed

Multifunctional popular belt winch

Electric Winch CT2354

12V DC
Capacity:9500 lbs (4309kgs)
Permanent Magnet Motor:12V input:3.5kw/4.7hp, output:2.7kw/3.6hp. 24V input:4.6kw/6.2hp,output:3.0kw/4.0hp
Gear Reduction Ratio:294:1(12V);210:1(24V)
Soleniod:12V 230A / 24V 110A waterproof
Steel cable:9.2 mm×29m)
Drum size:63mm×227m
Mounting bolt pattern:10"×4.5"(254mm×114.3m)4-M10
Overall dimension:570mm×180mm×240mm
1pc 4wd roller fairlead
1pc wireless remote control
1pc 3m remote control
1pc Solenoid box assembly
1bag hardware
Each pc in brown box with instruction manual

Winches can be installed on automobiles ranging from cars to trucks. These winches are heavy duty and are either manual crank winches, in which the operator cranks in a circular motion to reel the winch cord up, or electric winches, which operate with electricity or a battery to reel the winch cord up. These winches can be used to pull out other cars that are stuck, or to pull out the car with the winch, if it is stuck itself. Winches installed on automobiles can also pull pieces of equipment or trailers behind the automobile at a slow speed, or help to remove brush, stones or other large, heavy objects to which the winch cord is connected.

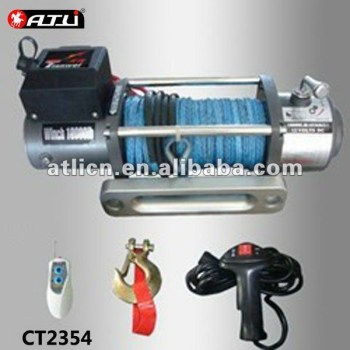

belt winch picture

Multifunctional belt winch electric winch capstan winch

Notice:

1) Do not use winch as a hoist, do not use for transportation of people.

2) do not operate and spool under full load over one minute continuously.

3) While motor is over heating, please stop for a while to cool down.

4) Limited lifetime warrantly

belt winch
